 Post subject: FOZ_xtc... Fixed :)
PostPosted: Mon Jul 29, 2013 5:45 pm
User avatar

I Say: Stop BSL. Breed Specific Legislation. Bull Sh!t Law
Vehicle: MY10 XT/STi partial swap

Posts: 4057
Location: Melburn
[*]Have to take my stock standard XTP to the panel shop to repair a scratch - no better time to start!

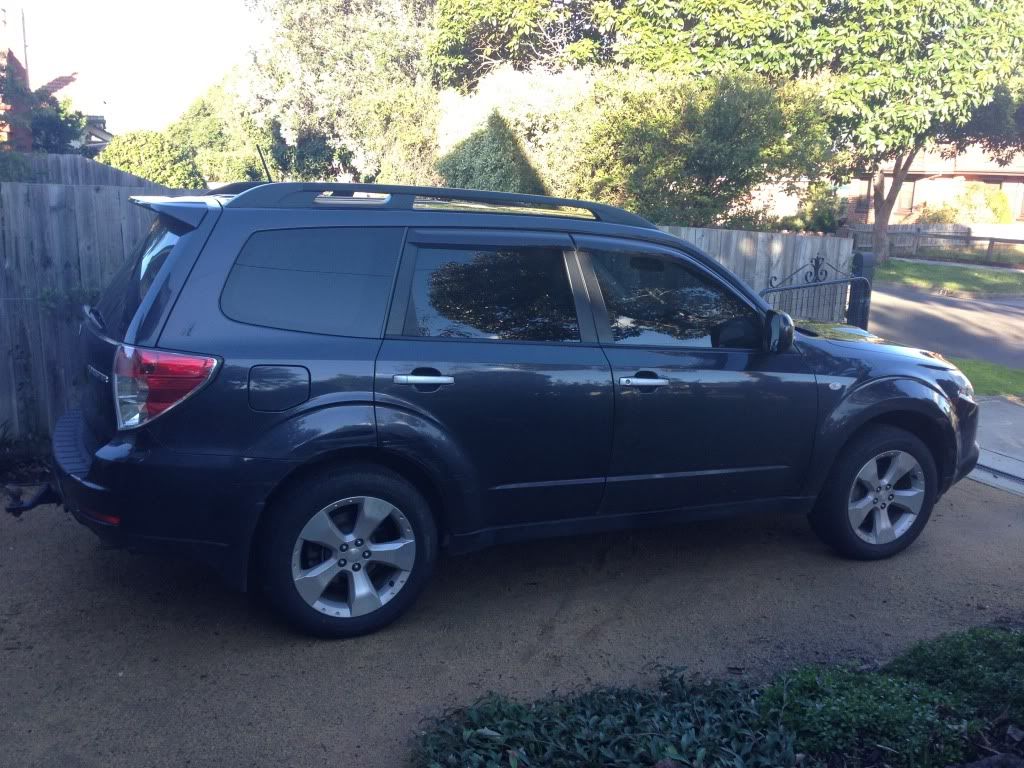

08.2012: Bought her from Brisbane and drove her back to melb @43,000 kms:
- OEM sports grille
- Tow bar
- Momo knob Replaced therapy
- Resonectomy


The previous owner was a member on here, but i never knew.




Then I discovered ozfoz about a year later... the rest is history :shock:

09.08.2013: Colour coded handles
12.08.2013: DVD/SATnav bypass switch
13.08.2013: No more fried eggs (silver indicator globes)
15.08.2013:
- Debadged rear
- Rebadged ozfoz
- STi 1.3 bar cap x2
- Turbosmart Kompact Bov
- Hella Supertones

16.08.2013:
- STi Exhaust finishers - never installed
- STi titanium knob - black is better
- Mudguard delete
- Rear Reflectors

28.08.2013: MY12 STi Front Seats - Purchased
30.08.2013: MY12 STi Suspension - Purchased
02.09.2013:
- Two black eyes
- Plastidip'd foglight surrounds

03.08.2013:
- Phat Lip - Front spoiler
- Fitted STi Seats

04.09.2013:
- EZ-LIP
- Dog Mod

08.09.2013: MY12 STi front strut mod
10.09.2013: Got some low! MY12 STi front and rear suspension fitted
11.09.2013: FSB 22mm Whiteline & adjustable endlinks - purchased and powder coated white
21.09.2013: STi Knob - custom anodised black
25.09.2013: RSB 20mm Whiteline with mount supports
27.09.2013:
- Cobb CAI arrives and fitted
- Invidia Cat Back Exhaust arrives

01.10.2013: JDM Front Pods
08.10.2013: Full Whiteline FSB and RSB set-up
13.10.2013: Sway bars fitted
17.10.2013: Walbro fuel pump fail
18.10.2013: DW65 fuel pump (this one fits)
21.10.2013: AVO dump
24.10.2013: MY13 STi Brembos
26.10.2013: DW65 fitted
31.10.2013: Cobb short shifter - link to DIY
07.11.2013: RDA Brake Rotors - dimpled and slotted
08.11.2013: AVO dump Ceramic Coated
09.11.2013: Fitted Turbo back exhaust
10.11.2013: Cobb Turbo Heat Shield
16.11.2013: THE OIL LEAK :shock: that caused my engine failure
27.11.2013: Hel Braided Brake lines
01.12.2013:
- tail light smoke fail
- fog light smoke win
- Up-graded bulbs

02.12.2013: Ordered Rays
06.12.2013:
- Throttle Body to TMIC Silicon hose
- Perrin Silicon Turbo Inlet Hose

10.12.2013: One step colder plugs - NGK Iridium
13.12.2013: Purchase BNR turbo
13.12.2013: Brembo clearing spare
06.01.2014:
- BNR VF40 EVO3 16g Hybrid Turbo arrives
- flip key

06.01.2014: CAI Pre-filter sock
06.01.2014: Brembos rebuilt and painted
21.01.2014:
- STi Steering wheel Airbag
- Front guard indicator LED lenses

22.01.2014: PLX Gauges
23.01.2104:
- Process West TMIC in Satin Black
- Whiteline Endlinks
- CAMS motor racing licence!

24.01.2014: KU31s
25.01.2014:
- KAPP industries Fire Extinguisher Bracket install
- TMIC install
- Fumoto Oil Drain Valve

31.01.2014: Kartboy Endlinks
01.02.2014: My First Hill Climb - Haunted hills Victoria
04.02.2014: Dans Garage Detailing
05.02.2014: Infamous Performance Turbo Oil Feed Line and filter
06.02.2014:
- Perrin Turbo Blanket
- Injector Dynamics ID1000 injectors

07.02.2014: Catch Can - now i have two

11.02.2014:
- Cobb 3 port electronic boost control solenoid
- Cobb battery tie down

17.02.2014: STi steering wheel
19.02.2014: Ortiz custom Gauge Pod
01.03.2014:
- steering wheel swap
- Wrapped intercooler hose
- Perrin Endlinks

02.03.2014: Rob Roy hillclimb - 2nd in class
03.03.2014:
- Perrin Stubby aerial
- Whiteline Roll Centre Adjust

07.03.2014: PTP heat shielding
17.03.2014: Perrin Positive Steering Response System (castor correction)
22.03.2014: Mt Leura Hillclimb
24.03.2014: Back to stock height
30.03.2014: Front Lip respray - two-tone matte/gloss DGM 61k
03.04.2014: Perrin Pitch Stop Mount
04.04.2014: Hyperflow engine cover
04.04.2014: Paintless Dent Removal - http://www.qbdentfree.com.au
05.04.2014: Super tones toned down - repainted
07.04.2014: Heat shielding and pitch stop install
09.04.2014: tow hooks, licence plate delete and twin catch cans
13.04.2014: DECA Hillclimb - Shepparton, VIC
16.04.2014:
- D2 Coilovers
- JDM Rear pods

28.04.2014: 80085/BOOBS
02.05.2014: Ceramic Coated Turbo hotside
06.05.2014: Parts Galore
08.05.2014: Exhaust and rear bar trimmed to fit
09.05.2014: Rear pods installed
14.05.2014: Rays arrive
15.05.2014: Brakes ready for fitting
15.05.2014: Wolfs hard body sealant - for wheels
17.05.2014: Wheels fitted - don't clear Brembos :x
22.05.2014: Gauge pod fitted
30.05.2014: Competition Clutch, Stage 2 clutch and lightened flywheel
14.06.2014: Gauges wiring harness
15.06.2014: WRX instrument cluster
20.06.2014: Redline Lightweight Shockproof Gear Oil
24.06.2014:
- McGard STi Lug nuts sold
- wheel spacers
- Front Strut Brace
- Cusco heal/toe acc pedal

28.06.2014: The big day of parts installs
04.07.2014: Turbo Actuator issue - wastegate stuck and overboosting
06.07.2014: Broardford Hillclimb and boostcut
08.07.2014: Ran Vac line for boost gauge
16.07.2014: Ganador Super LED Mirrors purchased
18.07.2014: it's my birthday! 12 months on Ozfoz!
19.07.2014: Big end bearing gone on number 4 piston
08.08.2014: Engine Rebuild - forged all round

Mum, I've been bad!

Built goodness - no turning back now

RSS Bottom End Balanced to 0.5 gm

EJ257 short - Second hand - Decked, Torque plate honed and bored to 100mm
EJ257 Nitrided Crank - oil gallery mods for better pressure and flow to bearings
ACL race bearings - crank and con rod - old stock, not the new Chinese versions
Nitto H Beam 4340 forged billet steel rods
Crawford Performance 2618 T6 high tensile forged aluminium Pistons
Chrome Piston Rings

Heads by Phillip Lowe

ARP headstuds
EJ25 Heads - reconditioned with Port and Polish to support flow up-to 400kw
Cosworth S2 grind Cams (Intake - 278 deg. 10.7mm lift / Exhaust - 274 deg. 10.mm lift)
Kelford valve springs
OEM Head gaskets

Other

OEM Subaru Rebuild Gasket Set
OEM Subaru Water Pump
OEM Subaru Oil cooler / heat exchanger
OEM Subaru Timing Belt kit
OEM STi 11mm Oil Pump
Cosworth Timing Belt Guide
Killer-B Oil pick-up
Killer-B Oil Baffle
Killer-B Header 'tank'
Perrin Lightened Crank Pully

18.08.2014:
- Cossy Cams
- Killer-B Header 'Tank'
- Killer-B Sump Baffle
- Kelford valve springs

07.09.2014: Cusco Rear LSD RS type 1.5 way
26.09.2014: Ganador Super LED Mirrors landed
02.10.2014: Ported and Polished heads assembled
09.10.2014: Heads and sump etc all fitted up
09.10.2014: MY09 DCCD six speed
17.10.2014: Black steering wheel controls, six speed starter
20.10.2014: Cams re-set, timing gear on. Not long to go now
24.10.2014: Dyno day of disappointment 177.8kw @ 14psi
25.10.2014: Brembos, Ganadors and shifter bushes
26.10.2014: 2014 WRX Club Show n shine
18.02.2015: STi front strut brace
03.03.2015: Eyelids
10.03.2015: PLX AFR / Romraider logger procedure


To Do

- 09 DCCD Six speed - done
- DCCD Pro - done
- 07 Spec-C 2-way R180 - done
- Rear Brembos and Rotors - done
- Dual Catch Cans - done
- Parallel Fuel Rails - done
- Fuel pressure regulator - done
- Bigger fuel pump - done
- Fuel surge tank - done
- Finish Gauges - done
- 24mm Front anti-sway bar - done
- WRX Cluster swap
- Black steering wheel controls - done
- Hyperflow engine cover
- Roof rail delete
- Black out roof lining and interior




the end for now


ImageIMG_6721


_________________
the build

My Tonka Truck

My 2-door STi racecar

Breed Specific Legislation (BSL) kills innocent dogs, stop this Bull Sh!t Law. Punish the deed, not the breed!!!


Last edited by housemusik on Sun Nov 26, 2017 3:50 pm, edited 475 times in total.

Top
 Profile

 Post subject: Re: XTC... the time has come for MY10 XTP
PostPosted: Mon Jul 29, 2013 6:58 pm
User avatar

Vehicle: MY06 XT - Black

Posts: 2199
Location: Canberra
It's a good base to start with!! Welcome aboard.

Love the dogs. My Foz was partly purchased as a way to move my rottie around. :P

_________________
YNO Build Thread
eTuned by Steve @ Pullz-On Tuning for 98 and E85

FC RX7 Track Build


Top
 Profile

 Post subject: Re: XTC... the time has come for MY10 XTP
PostPosted: Mon Jul 29, 2013 8:52 pm
User avatar

I Say: This one is staying stock...
Vehicle: GC8Track/NFIIFairlane/MY12STi

Posts: 4756
Location: Melbourne
I bought mine to cart my Golden Retriever around, great versatile car!

_________________
Once was SH Build: viewtopic.php?f=12&t=28684&st=0&sk=t&sd=a&hilit=Delete

GC8 Track build - http://ozfoz.com/forum/viewtopic.php?f=77&t=43199
NFII Fairlane
PX Ranger


Top
 Profile

 Post subject: Re: XTC... the time has come for MY10 XTP
PostPosted: Mon Jul 29, 2013 9:53 pm
User avatar

I Say: Stop BSL. Breed Specific Legislation. Bull Sh!t Law
Vehicle: MY10 XT/STi partial swap

Posts: 4057
Location: Melburn
H-are wrote:
I bought mine to cart my Golden Retriever around, great versatile car!
S2-13BT wrote:
It's a good base to start with!! Welcome aboard.

Love the dogs. My Foz was partly purchased as a way to move my rottie around. :P


Yes, prob would have never gone the foz had it not been for the room required! 80kgs of dog needs space!

_________________
the build

My Tonka Truck

My 2-door STi racecar

Breed Specific Legislation (BSL) kills innocent dogs, stop this Bull Sh!t Law. Punish the deed, not the breed!!!


Top
 Profile

 Post subject: Re: XTC... the time has come for MY10 XTP
PostPosted: Mon Jul 29, 2013 9:54 pm
User avatar

Vehicle: MY16 Ts

Posts: 1573
Location: WA
welcome

_________________
TO SEE OUR FORESTERS, CLICK BELOW!

MY 09 XTP http://ozfoz.com/forum/viewtopic.php?f=12&t=20872
MY16 Ts http://ozfoz.com/forum/viewtopic.php?f=12&t=54905


Top
 Profile

 Post subject: Re: XTC... the time has come for MY10 XTP
PostPosted: Mon Jul 29, 2013 10:13 pm
User avatar

I Say: R is for RACE!
Vehicle: '15 CWP 6mt Rex

Posts: 7078
Location: Sydney
Welcome mate :waves:

_________________
MY15 CWP 6mt WRX

The Rumble Shack - Subaru Mechanical and Performance Workshop
Check our vendor section or Find us on Facebook!

ECU Tuning info! Click here for info


Top
 Profile

 Post subject: Re: XTC... the time has come for MY10 XTP
PostPosted: Mon Jul 29, 2013 11:29 pm
User avatar

I Say: Life is like a box of chocolates. "May contain traces of nuts"
Vehicle: MY10 XTP, RX2

Posts: 4734
Location: Soon, toad country
Welcome. Better take an anti mod pill, because it becomes an addiction so fast. Especially with the SH

_________________
Tuned by POWERTUNEaustralia
Engine by DESHELE performance
Mechanical work by THE RUMBLE SHACK
Fabrication work by DAHTONE RACING
My build thread


Top
 Profile

 Post subject: Re: XTC... the time has come for MY10 XTP
PostPosted: Tue Jul 30, 2013 7:26 pm
User avatar

I Say: Stop BSL. Breed Specific Legislation. Bull Sh!t Law
Vehicle: MY10 XT/STi partial swap

Posts: 4057
Location: Melburn
Sunny day today. Two packages:

Supertones.
Front under spoiler - couldn't resist a dry fit!



Had a look at disabling sat nav, looks simple enough - must get a soldering iron.

Also thought i'd perform a resonectomy. Previous owner bet me to it...



_________________
the build

My Tonka Truck

My 2-door STi racecar

Breed Specific Legislation (BSL) kills innocent dogs, stop this Bull Sh!t Law. Punish the deed, not the breed!!!


Last edited by housemusik on Mon Aug 25, 2014 4:24 pm, edited 2 times in total.

Top
 Profile

 Post subject: Re: XTC... the time has come for MY10 XTP
PostPosted: Mon Aug 05, 2013 7:47 pm
User avatar

I Say: Stop BSL. Breed Specific Legislation. Bull Sh!t Law
Vehicle: MY10 XT/STi partial swap

Posts: 4057
Location: Melburn
So I just payed for an Invidia TBE Q300 quad tip (for SH) to be told that there is an issue with the dumps on these systems that mean they don't fit the SH as they are supposed to. They said they have been doing the x-force dump with the Invidia TBE.
Also, Invidia are manufacturing new dumps that do fit and these are 'weeks' away.
I'm not getting a tune until September.
I'm going to wait, if it takes too long there's always the x-force option...

I did have a win though... nice and shinny Kompact BOv.... tick

_________________
the build

My Tonka Truck

My 2-door STi racecar

Breed Specific Legislation (BSL) kills innocent dogs, stop this Bull Sh!t Law. Punish the deed, not the breed!!!


Top
 Profile

 Post subject: Re: XTC... the time has come for MY10 XTP
PostPosted: Mon Aug 05, 2013 8:15 pm
User avatar

Vehicle: 04XT, 05WRX & 11STi Spec R

Posts: 1611
Location: ACT
My Foz bought to carry two german shepherds around and gets used for everything from electrical goods, furniture and landscaping supplies. It replaced a Maloo ute in 2003 and nearly as useful for carting stuff around.


Top
 Profile

Display posts from previous:  Sort by
Post a new topicPost a reply Page 1 of 318   [ 3175 posts ]
Go to page 1, 2, 3, 4, 5 ... 318  Next


Who is online

Users browsing this forum: rossg and 6 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:
cron


Powered by phpBB © 2000, 2002, 2005, 2007 phpBB Group
"Takka LE" for phpBB3
