 Post subject: Chips' Daily Beater (new wheels and coilovers pg99)
PostPosted: Sat Sep 27, 2008 2:28 am
User avatar

I Say: Needs more positive manifold pressure.
Vehicle: MY01 S/tb - MY01 STi II Type M

Posts: 4920
Location: Port Macquarie, NSW
CURRENT MOD LIST

Engine
Ghetto spec PVC CAI
2.5" cat back exhaust
Bye_Evo Radiator Shroud

Suspension
Whiteline 24mm Adjustable rear sway bar
Whiteline heavy duty endlinks front and rear
Whiteline heavy duty RSB mounts
Whiteline adjustable lateral links
Whiteline toe lock kit
Whiteline 22mm front sway bar
Whiteline Roll center correction kit
Tein Street Basis coilovers
GT Liberty front and rear brakes
Custom length braided brake lines


Wheels
A-Tech Final Speed Gear-R 17x8 +46 wheels
Bridgestone RE003 235/45/17 tyres
Black McGuard wheel nuts

Exterior
Clear side indicators
Chrome indicator bulbs front and rear
15% window tint
Mesh grill
GT Bonnet
Ultrex My02 STi style scoop
S/tb STi Forester Bodykit
STi II Slimline Roof rails
Colour coded door handles and mirrors
Aerospec Headlight Covers

Interior
GT Lux pack Alcantara seats and door trims
White LED cabin and map lights
Momo Steering wheel
SF STi black leather gear knob with red stitching
Black Leather gear boot with red stitching
Black painted plastics
Rear top brake light blanking panel
Rear seat removed to make room for stereo components
SCA 1KG Fire Extinguisher and Kap Industries bracket

ICE
DAILY:
HU: Alpine CDE-9811
Speaker amp: 2X JBL P180.2 1x360wrms
Front speakers: JBL C608GTi 6.5" splits
Sub amp: 2X JBL BPx2200.1 1x2400wrms
Subs: 2X Treo Engineering SSX 12.22
Power: Odyssey PC2150 Battery in boot
Deadening: Dynamat extreme bulk pack x4
dB: 147.8dB (TermLAB)

COMPETITION:
HU: Alpine CDE-9811
Speaker amp: 2X JBL P180.2 1x360wrms
Front speakers: JBL C608GTi 6.5" splits
Sub amp: 2x JBL BPx2200.1 1x2400wrms
Subs: 2x Digital Designs DD9515g 15" in custom ported enclosures
Power: Odyssey PC2150 Battery in boot
Deadening: Dynamat extreme bulk pack x4
dB: 149.8dB @47Hz (TermLAB)

Latest pics


<--------------------------------------------------------------------->

Hey everyone,

I thought it was about time I introduced myself and my Foz. (That, and I'm pretty damn board at the moment :) )

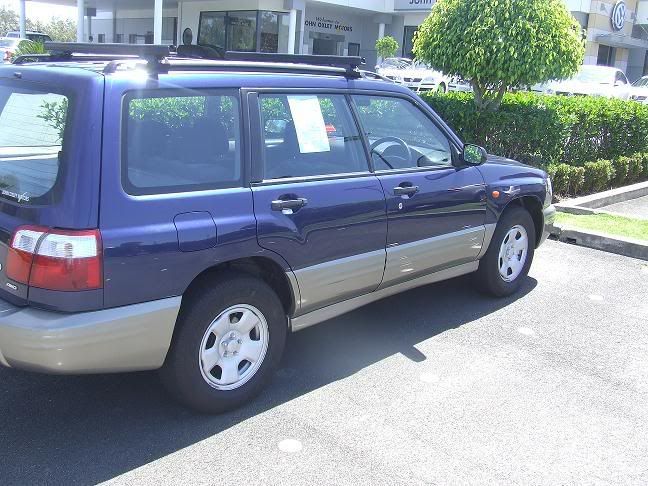

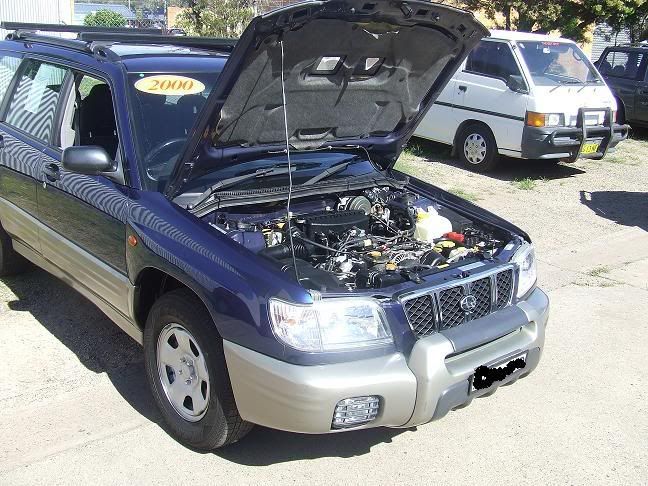

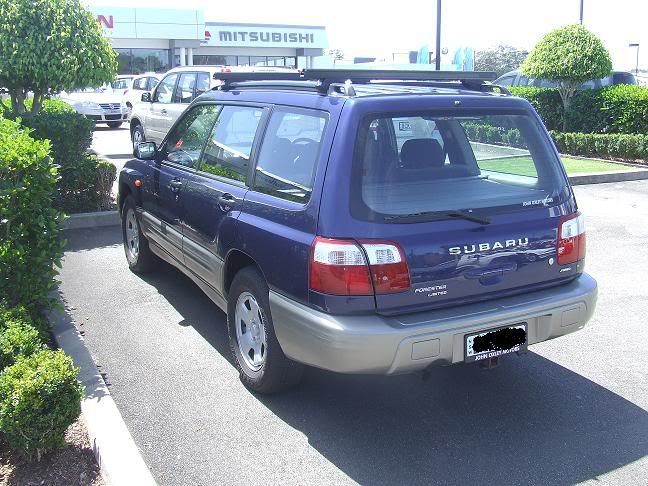

I'm Dylan, and this is my Foz when I first bought her.

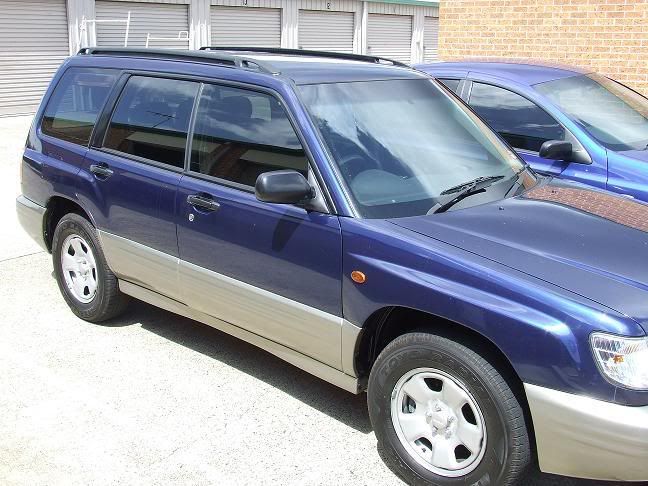

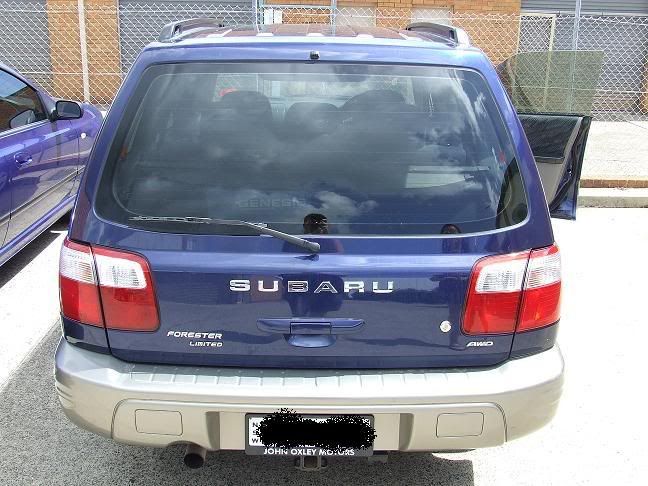

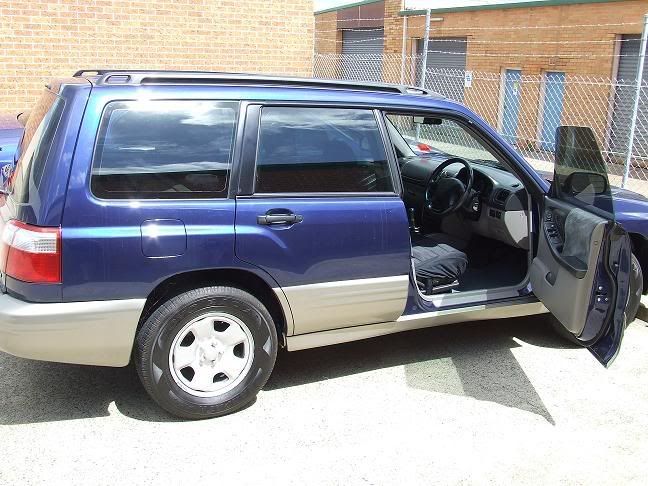

My first mods were 35% window tint, and a 2.5" cat back exhaust system.

Then, I started collecting some audio gear, to add to the gear I already had left over from my last car.

Front stage consists of, JBL C508GTi 5.25" component speakers, and 2 JBL P180.2 90WRMS x 2 amps to power them.

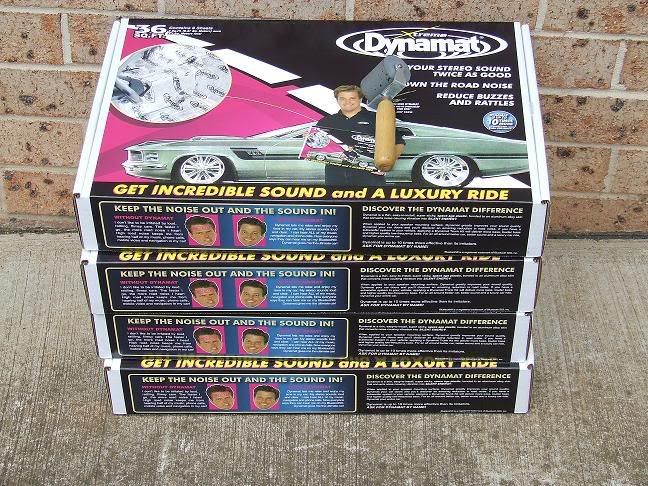

4 Bulk packs of Dynamat Extreme to stop all the rattles

My pride and joy, my rare JBL BPx 2200.1

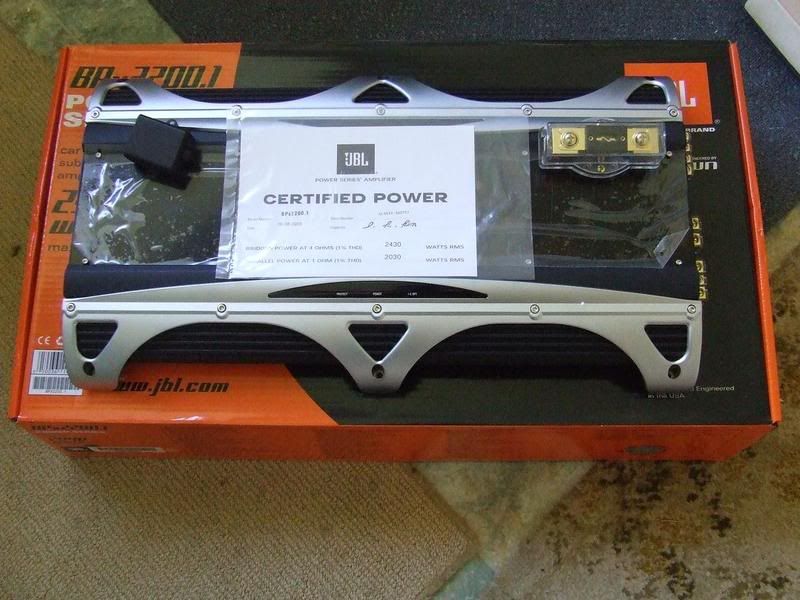

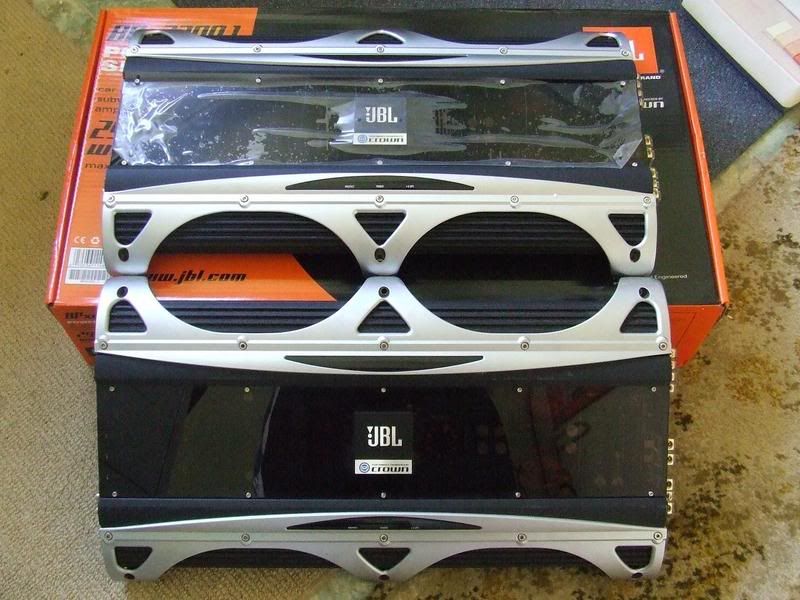

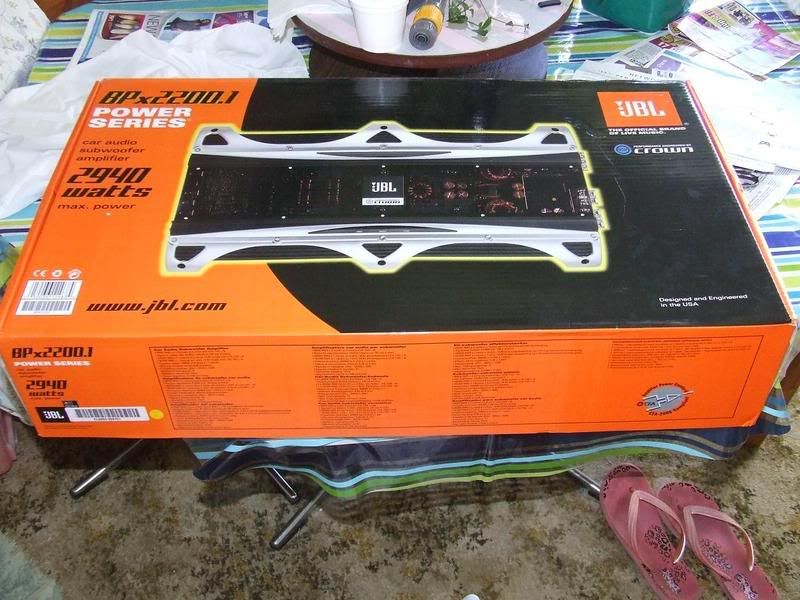

To match my other rare JBL BPX 2200.1

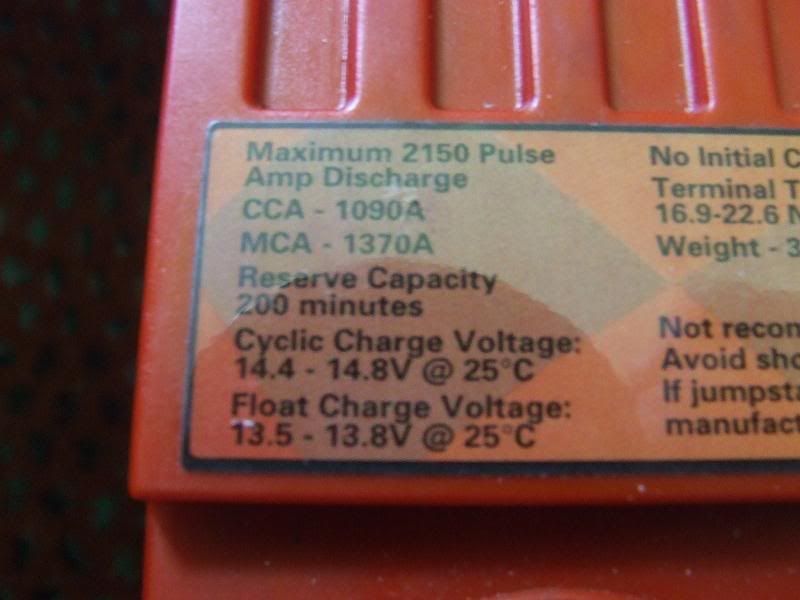

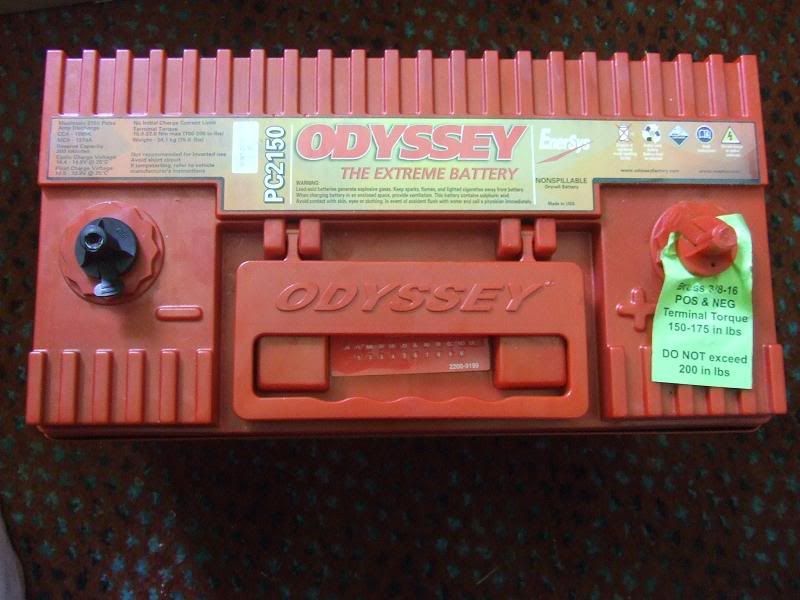

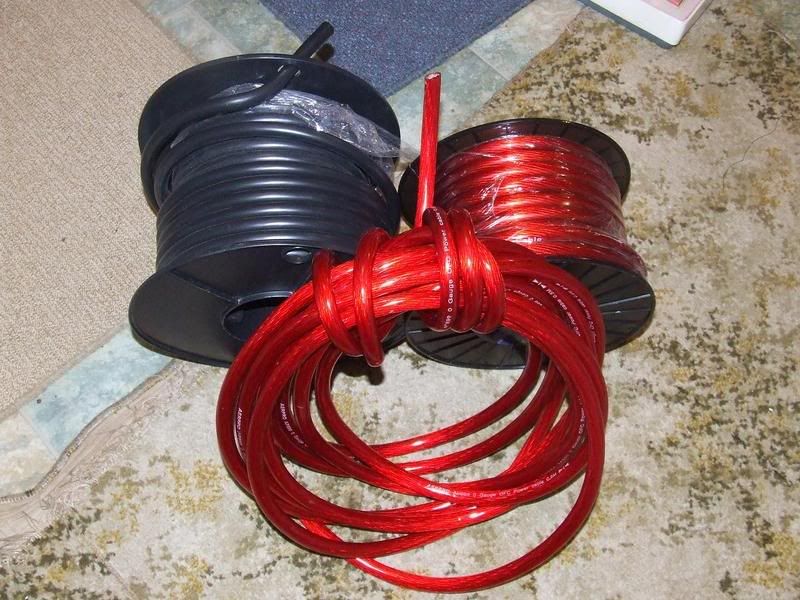

Now, to power those bad boys, a Odyssey PC2150 and 60m of 0awg cable.

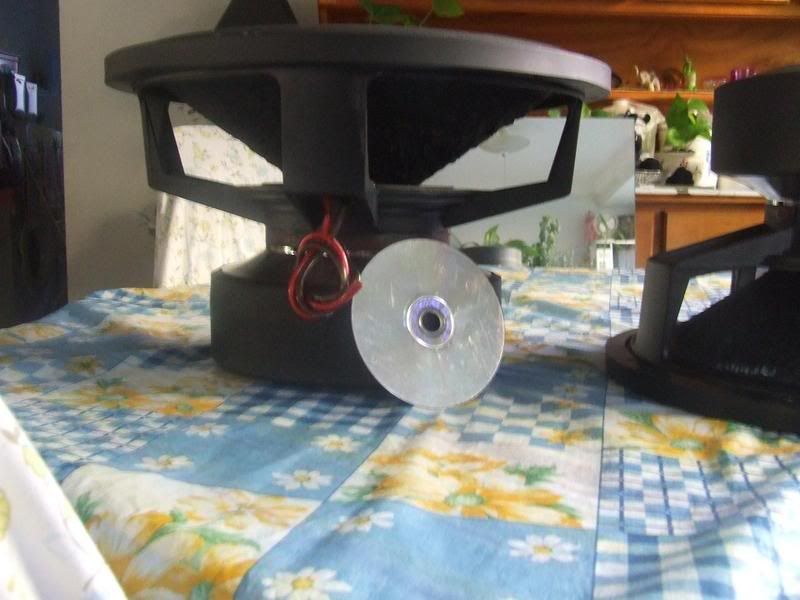

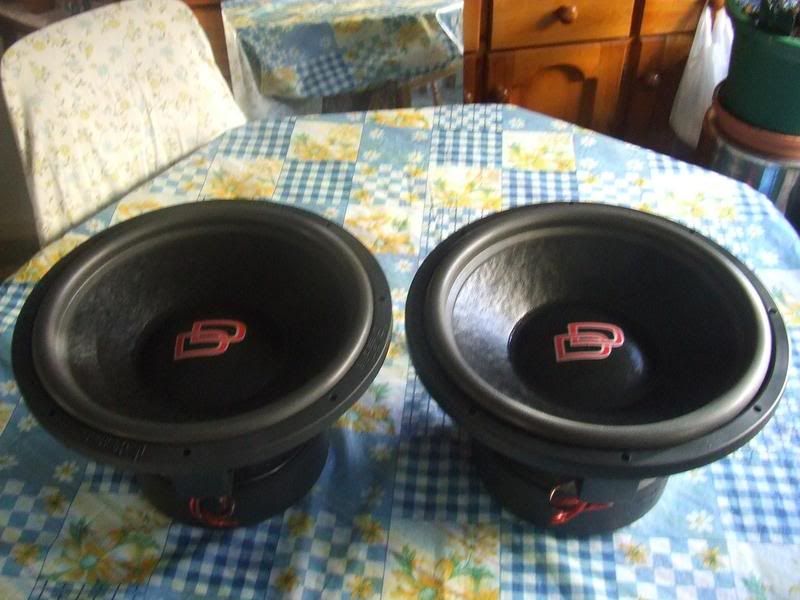

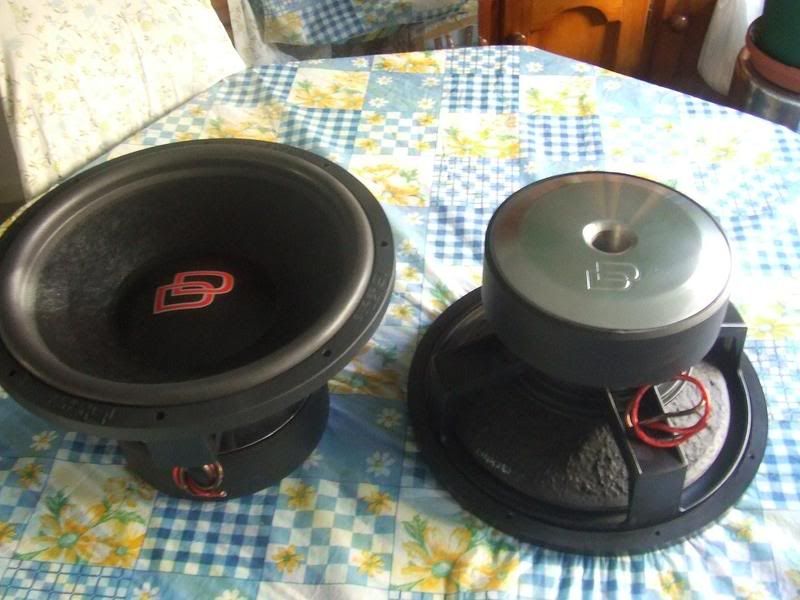

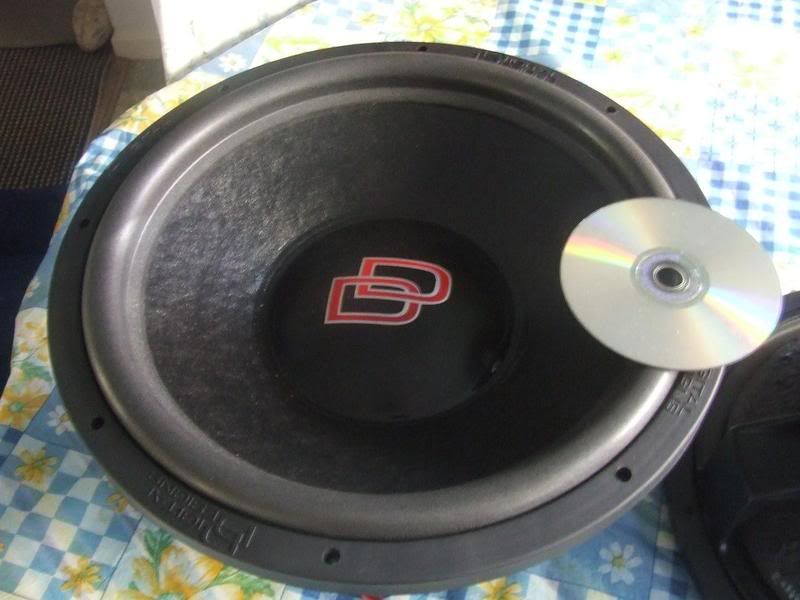

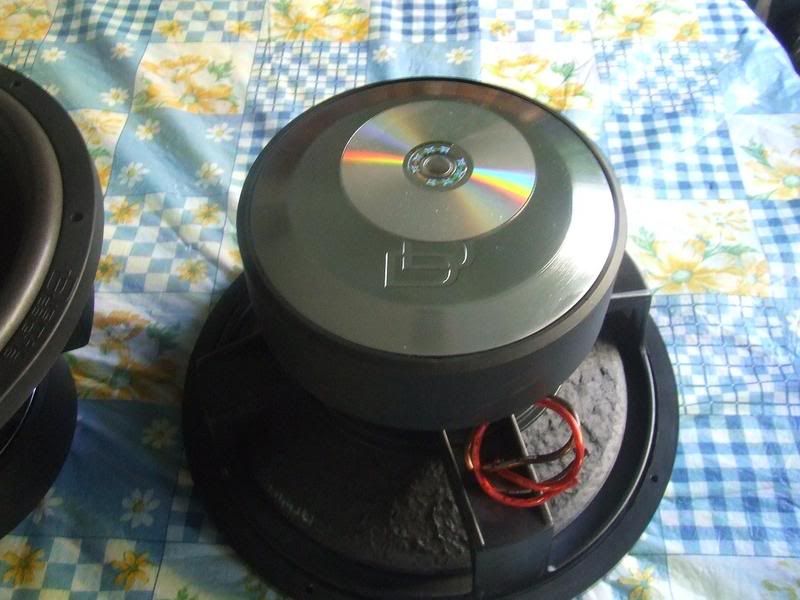

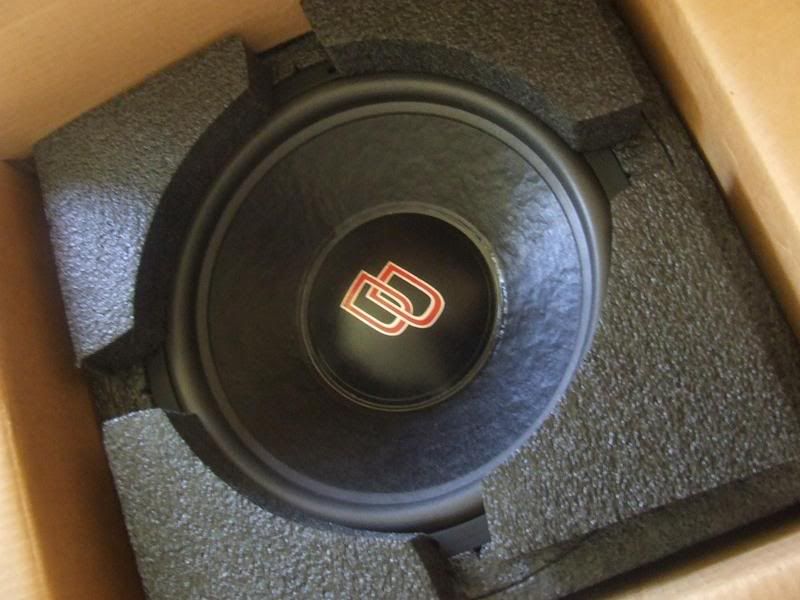

Finally, my subs showed up. 2 Digital Designs 9515g's

_________________
MY01 STi II Type M -Garage Ornament
MY01 S/tb -The New Daily
MY00 Limited -The Old Daily
MY01 GT -Unfinished Project


Last edited by Chips on Fri Jan 06, 2017 7:04 pm, edited 93 times in total.

Top
 Profile

 Post subject: Re: Chips's MY00 NA Limited
PostPosted: Sat Sep 27, 2008 2:37 am
User avatar

I Say: Needs more positive manifold pressure.
Vehicle: MY01 S/tb - MY01 STi II Type M

Posts: 4920
Location: Port Macquarie, NSW
So, while I didn't have use of my license for 3 months care of NSW P plater laws, I decided to do this.

And make a start on the Dynamat install.

After this, I went and bought some clear side indicators. I dont have any pics at the moment, but everyone knows what they look like. Then, I got my license back, so the Foz stayed un-modded while I was enjoying driving it, and my freedom once again.

_________________
MY01 STi II Type M -Garage Ornament
MY01 S/tb -The New Daily
MY00 Limited -The Old Daily
MY01 GT -Unfinished Project


Top
 Profile

 Post subject: Re: Chips's MY00 NA Limited
PostPosted: Sat Sep 27, 2008 2:58 am
User avatar

I Say: Needs more positive manifold pressure.
Vehicle: MY01 S/tb - MY01 STi II Type M

Posts: 4920
Location: Port Macquarie, NSW
Not to long after I got my license back, my center diff decided it no longer wanted to play ball. So, this put the ICE install on hold for about $1800 :(

So, a few of my friends and I decided to do a weekend trip to Newcastle a few months back, and the stock sounds just really would not cut it at highway speeds and road noise.

Speaker and amp install time!

I started with about 3 layers of Dynamat on the outer door skin.

Stock door^^
Dynamated outer skin^

Now, I figured that I should upgrade the stock speaker wiring whilst I had the door trims of. I thought this would be a rather simple job, boy was I wrong.

Stock speaker wires located on the door side.^
Stock wires located on the cabin side.^

I decided to use the stock wires to pull the new wires through the grommet and into the door. This is where it got difficult. I didn't realize that the grommet was cable tied and taped up in about 4 different places that i couldn't see.
So after cutting away all the tape and cable ties that were restricting me from pulling the new cable into the door, it was pretty straight forward.

New cable soldered to the old cable.^
New cable in place.^

Then I sealed and Dynamated the outer door skin as much as I could.

_________________
MY01 STi II Type M -Garage Ornament
MY01 S/tb -The New Daily
MY00 Limited -The Old Daily
MY01 GT -Unfinished Project


Top
 Profile

 Post subject: Re: Chips's MY00 NA Limited
PostPosted: Sat Sep 27, 2008 3:12 am
User avatar

I Say: Needs more positive manifold pressure.
Vehicle: MY01 S/tb - MY01 STi II Type M

Posts: 4920
Location: Port Macquarie, NSW
I then made up some baffles to mount the speakers to the doors out of 18mm MDF, and painted them do give them some water resistance, and help with the stealth look.

And prepped the speakers for mounting them to the baffles by sticking some self adhisive closed cell foam on the back of them. I also did this to the back of the baffles as well. This helps create an air tight seal between the speaker and the door. This along with sealing the service holes, makes the door as much like a speaker enclosure as possible.

Finally, the speakers are mounted.

_________________
MY01 STi II Type M -Garage Ornament
MY01 S/tb -The New Daily
MY00 Limited -The Old Daily
MY01 GT -Unfinished Project


Top
 Profile

 Post subject: Re: Chips's MY00 NA Limited
PostPosted: Sat Sep 27, 2008 3:28 am
User avatar

I Say: Needs more positive manifold pressure.
Vehicle: MY01 S/tb - MY01 STi II Type M

Posts: 4920
Location: Port Macquarie, NSW
Now, to install the amp.

Under the front passenger seat looks like as good a spot as any.
I also put a crossover under each seat.

Running the power cable.

Wiring up the amp.

You can also see my earthing point in that pic. One of the rear bolts that hold the front passenger seat in, yet to be sanded/scraped back to bare metal for best electrical connection.

Now, as I am yet to source a spare set of a pillar trims to make a nice fiberglass mount for the tweeters, and I didn't really have time when I was installing the front stage to do this any way. They are just held in by tape at the moment.

They should turn out similar to the a pillars I did in the '89 Lancer I owned before the Foz. But trimmed in Vinyl or Painted to match the rest of the interior instead of carpeted.

That is about where I am up to so far with the ICE install.

_________________
MY01 STi II Type M -Garage Ornament
MY01 S/tb -The New Daily
MY00 Limited -The Old Daily
MY01 GT -Unfinished Project


Top
 Profile

 Post subject: Re: Chips's MY00 NA Limited
PostPosted: Sat Sep 27, 2008 8:30 am
User avatar

Vehicle: MY99 GT - Diamond Grey.

Posts: 3123
Location: Brisneyland
Comprehensive install there mate!

Bet it rox teh kasbah :)

_________________


Top
 Profile

 Post subject: Re: Chips's MY00 NA Limited
PostPosted: Sat Sep 27, 2008 9:31 am
User avatar

I Say: The flow, go with it my children.
Vehicle: Gold 02 GT

Posts: 3310
Location: Coffs Harbour, NSW
looks good mate, but why not just install the tweeters in the spot for em n the doors?

_________________
2002 Sleeper GT


Top
 Profile

 Post subject: Re: Chips's MY00 NA Limited
PostPosted: Sat Sep 27, 2008 9:52 am
User avatar

I Say: Nowhere near as much as I used to!
Vehicle: Gone but not forgotten-MY08 XT

Posts: 16234
Location: Sydney, AUS
Awesome work mate. Great to see someone going to town with Dynamat like you have! That big JBL amp is a beauty! What are the specs on the 'birth sheet'?

TMWNN wrote:
looks good mate, but why not just install the tweeters in the spot for em n the doors?


To raise the sound stage and improve imaging. The door locations aren't the greatest in this regard.


Top
 Profile

 Post subject: Re: Chips's MY00 NA Limited
PostPosted: Sat Sep 27, 2008 10:58 am
User avatar

Vehicle: MY99 GT-Silver

Posts: 2207
Location: Goulburn NSW
Dylan its looking good, all you need now is to whack a turbo under the bonnnet :lol: Top write up


Top
 Profile

 Post subject: Re: Chips's MY00 NA Limited
PostPosted: Sat Sep 27, 2008 11:45 am
User avatar

I Say: Needs more positive manifold pressure.
Vehicle: MY01 S/tb - MY01 STi II Type M

Posts: 4920
Location: Port Macquarie, NSW
TMWNN: pete_mac has hit the nail on the head. I am still playing with tweeter positioning. but at the moment, base of the a pillars is probably where they will end up.

pete_mac: The specs on the birth sheet are 2430WRMS @ 4 Ohms with <0.01@THD and 2030WRMS @ 1 Ohm with <0.01%THD. Crown Engineering FTW! I also still have a bulk pack left. I think the roof is going to make a fair bit of un wanted noise once I get the sub stage sorted.

Ray: Thanks mate. Haha, Turbo would be awesome. But until I get my open license, Handling mods FTW!!!
